PE (Polyester) bag filter
Contact

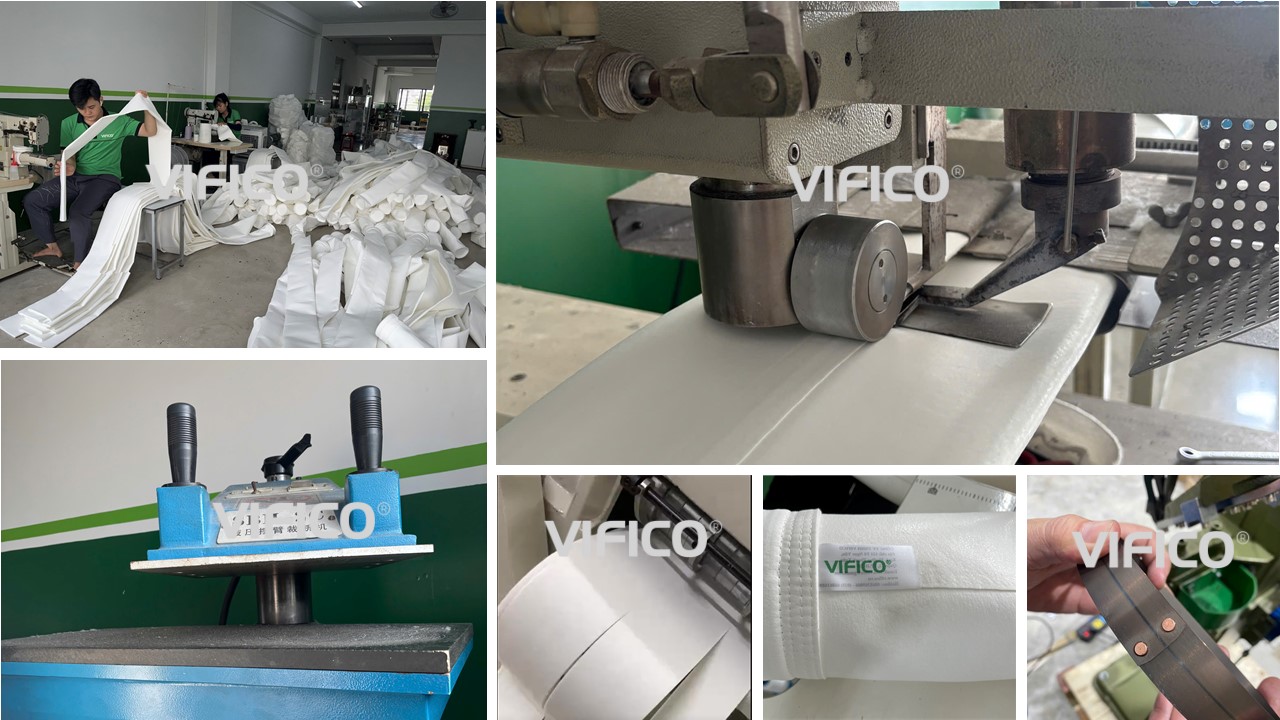

Polyester filter bag are made of 100% filament polyester fiber,after needle punched, singed heat set calender for the raw polyester filter felt material, then polyester filter felt can be sewn into polyester filter bags.
1.Operation temperature 130 Deg c,
2.the max surge is 150 deg c.
3.good anti-acid, good anti-alkali ,good hydrolysis stability
4.Mean Air Permeability: 260 l/m2/s @200pa
5.It is the cheapest filter media in the bag filter filtration field. Polyester bag filter is the most popular items in the bag house system.

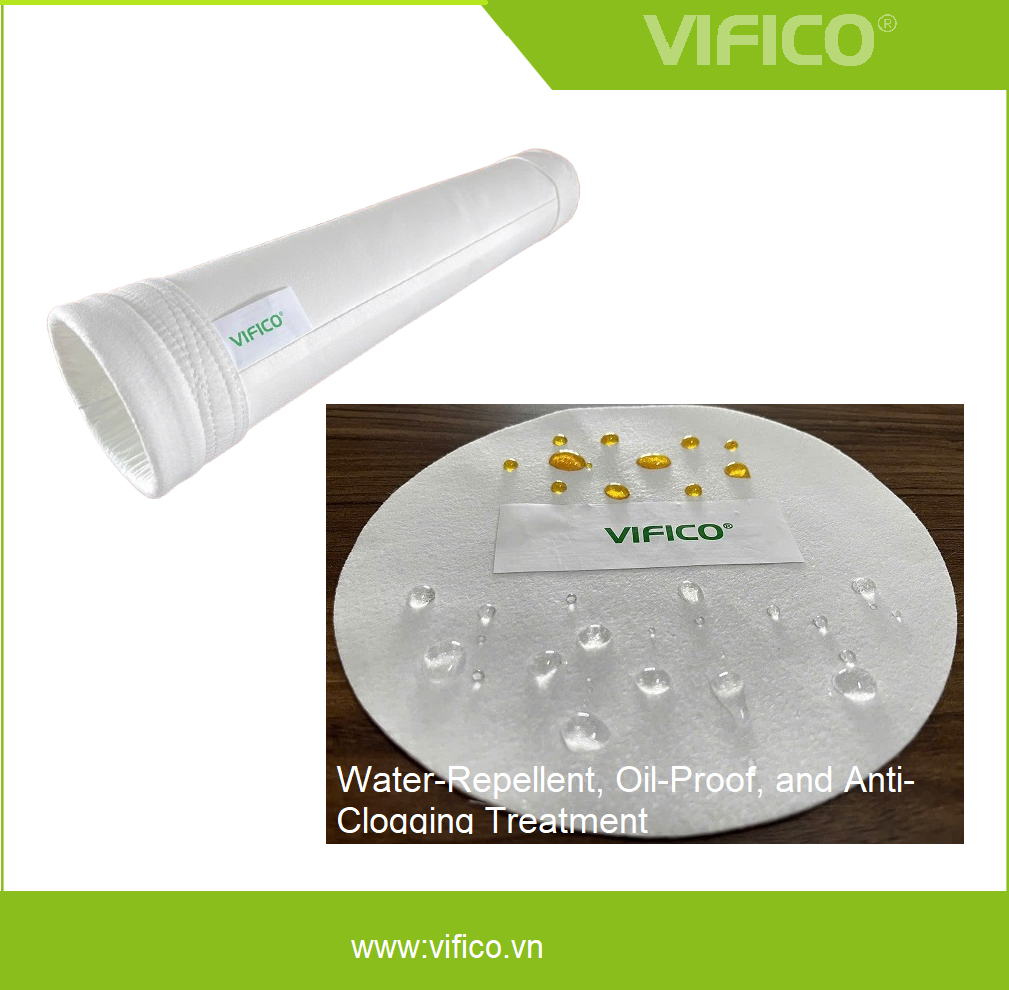

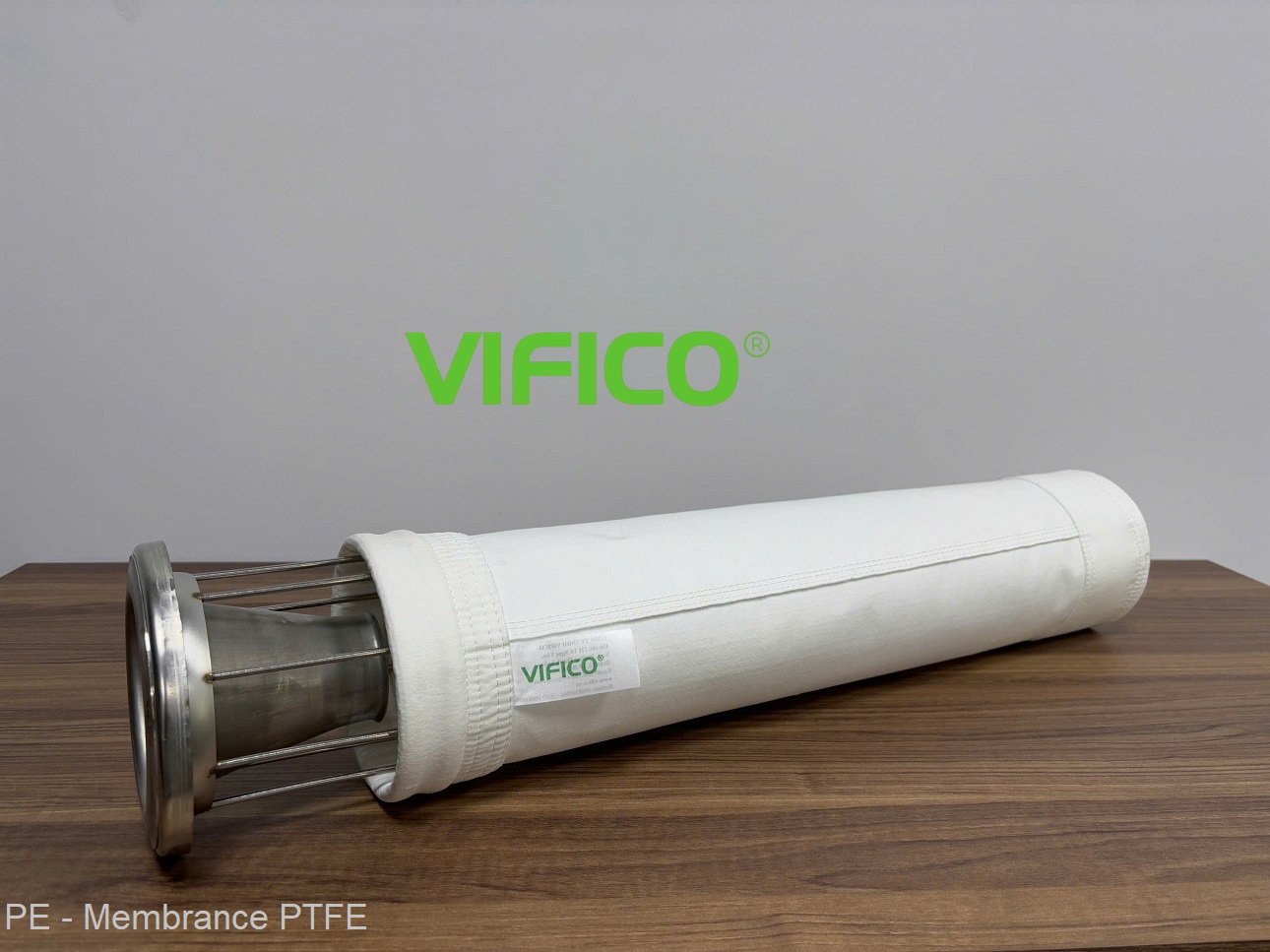

Available Finish: singed,calendar,heat set PTFE membrane,W/O,anti-static treatment.
Advantage:
Polyester bag filters Breaking Elongation is less than 20% for MD and 40% for CMD,low dry shrinkage, can work well in the 130 deg C. the material is cheaper than other material, so widely used in a lot of bag house system.
Application:
Polyester filter bag widely used in mine, limestone, cement, iron and steel industries,alumina delivery, electrolytic aluminum, non-ferrous metal production, wood processing, food processing and pharmacy industry.
Engaged in creating a clean and fresh environment for people, VIFICO is specialized in polyester filter bag. As one of the best manufacturers and suppliers, we can assure you the best quality and stable performance of our custom products.
Techinical data
|
Construction |
Needle felt |
|
Fibre Composition |
Polyester |
|
Scrim Composition |
Polyester |
|
Felt Area Weight |
500g/m2(±5%) |
|
Thickness |
1.8-1.9mm |
|
Mean Air Permeability |
260 l/m2/min@200pa |
|
Breaking Strength-MD（warp） |
900 N / 125px |
|
Breaking Strength-CMD（weft） |
1300 N / 125px |
|
Breaking Elongation( N/125px)-MD（warp） |
20% |
|
Breaking Elongation( N/125px)-CMD（weft） |
40% |
|
Dry Shrinkage MD（130℃warp） |
＜1.5 % |
|
Dry Shrinkage CMD（130℃weft） |
＜1.5 % |
|
Operating Temperatures |
<130 deg C |
|
Recommended Maximum Continuous |
130 deg C |
|
Recommended Maximum Surge |
150 deg C |
