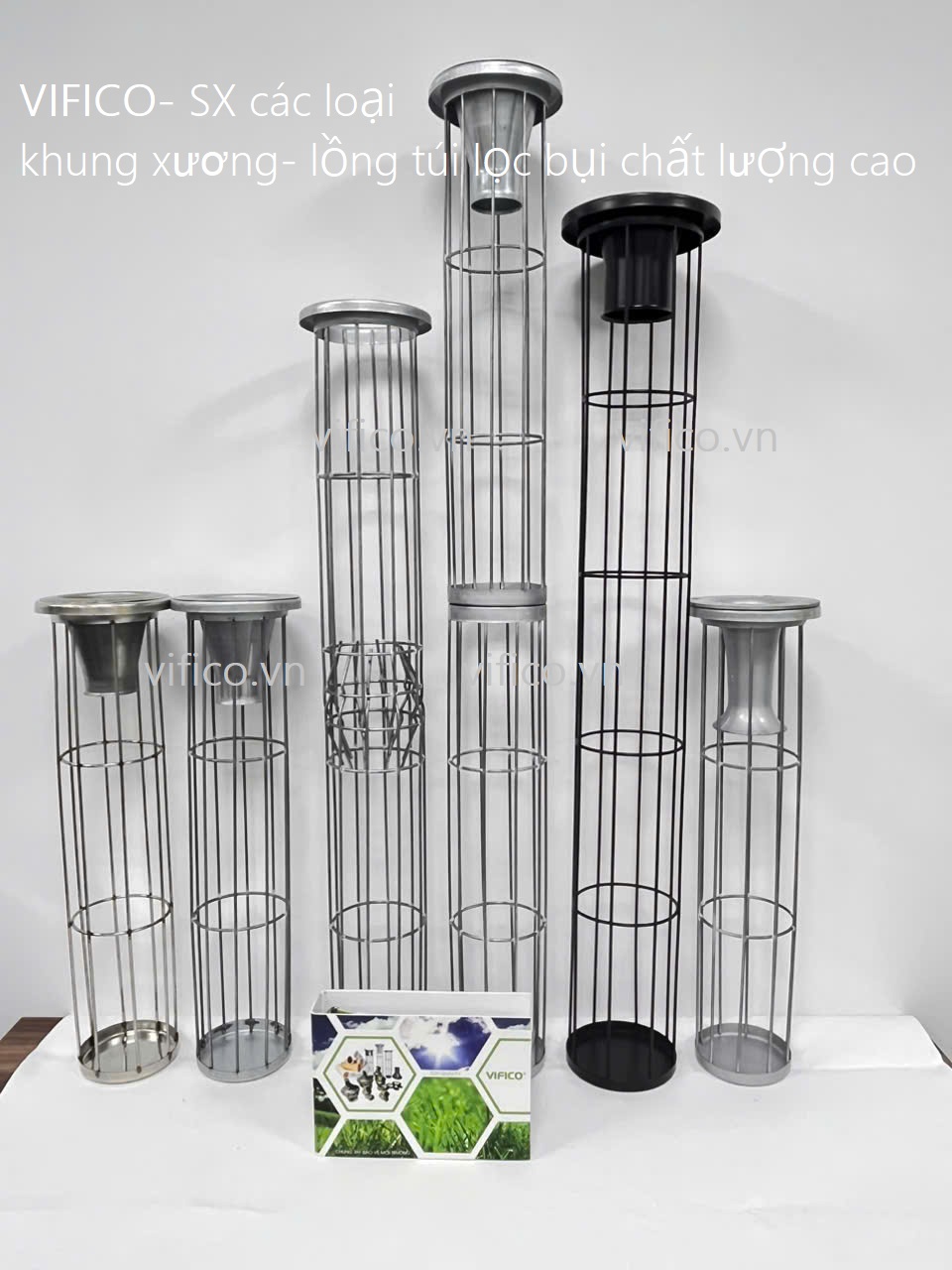

All filter bag cages

Dust filter frame, Filter bag cage frame, Filter bag frame:

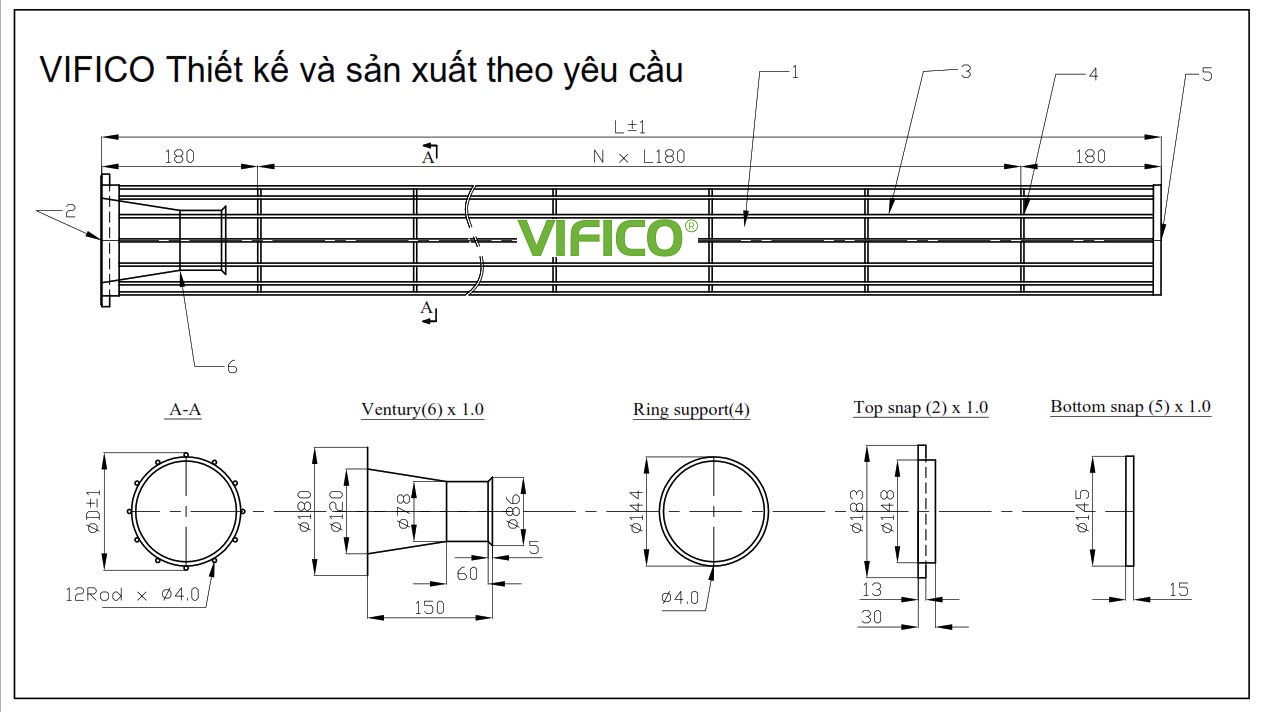

VIFICO designs filter bag frames according to customer requirements or we will propose optimal product specifications and designs for each different need. After the customer agrees on the drawing specifications, we will produce samples if needed or proceed to mass production according to the order

Production technology: On imported CNC automatic spot welding line

Raw material: High strength galvanized steel > 70kgf/mm2 (TCVN 2053-1993) or according to customer requirements such as INOX 304

Coating finish: According to customer requirements, acrylic can be dipped, electrostatic paint

Common specifications:

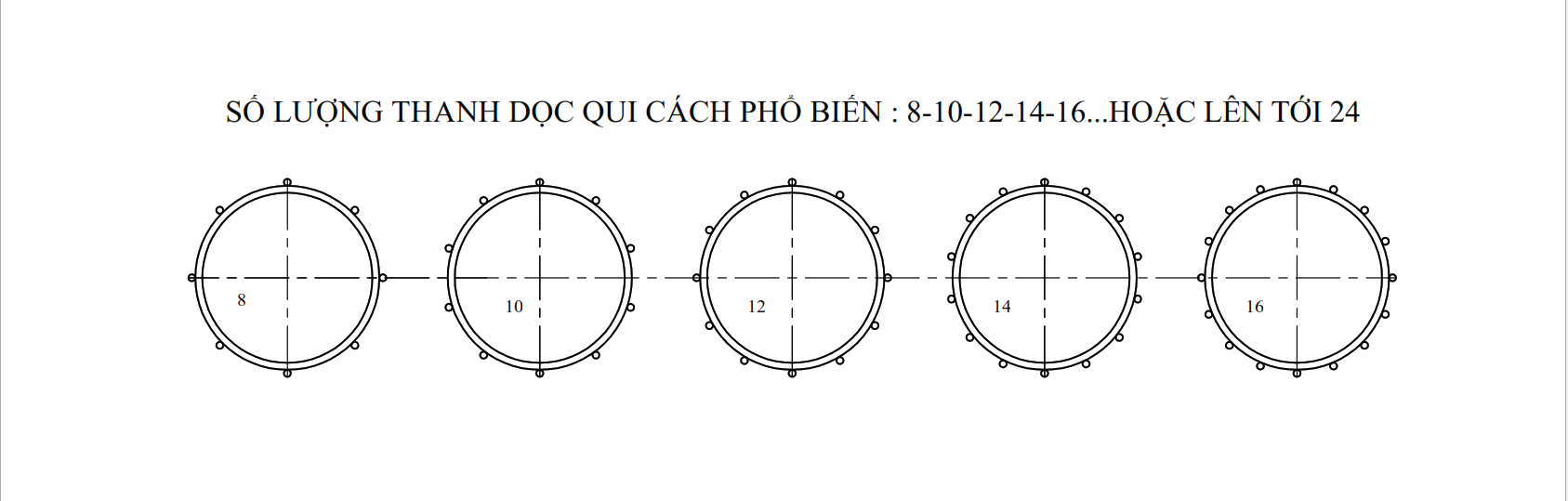

- Longitudinal wire rod from 8 to 24

- Diameter 110 to 160 or larger

- Maximum length up to 7.5m solid frame or production according to request can be up to 9m

- Steel wire diameter 3.0-5.0mm

- Solid frame or 2-section, 3-section frame depending on request

- Frame mouth type: Top-down or bottom-up or no mouth

- Galvanized steel Venturi, Venturi Stainless steel 304, Venturi cast aluminum alloy ensures use in harsh environments without fear of rust

Quality: Ensures strong welds, straight, round frames, no burrs to increase bag life

Quickly respond to customer needs: Capacity of 200 standard frames/day

Application: Widely used in fabric bag dust filtration systems to stretch the bag but still ensure the bag has good elasticity without being too tight.

We manufacture directly to ensure the best quality and price

VIFICO has attractive incentives for partners who are dust filtration system manufacturers as well as businesses that have been using products that need to be replaced periodically



Please contact us to receive samples and experience
